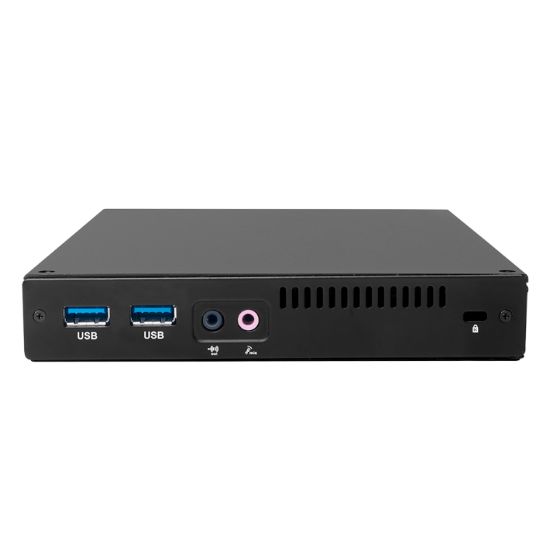

Giada F106D Celeron N5100 4GB eMMC

The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron® N5100 (TDP 6W, 1.1GHz base frequency).
Manufacturer: Giada
Availability: 89 in stock
SKU: F106D-FVN510042N0G-GIA
R5 489,46
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron® N5100 (TDP 6W, 1.1GHz base frequency). The PC utilises Intel® UHD Graphics and is capable of delivering vibrant dual 1080p video playback. The device has HDMI 2.0a and DisplayPort 1.2 ports, which are capable of supporting resolutions up to 4096 x 2160 at a refresh rate of 60Hz. The device is equipped with a passive thermal cooling system, which features a fanless design. This design not only reduces the failure rate but also ensures that the device operates noise-free and remains dustproof. The Giada F106D Mini PC is designed to be used in mission-critical applications.

FEATURES:

  • Intel® Celeron® N5100 Processor
  • 1 x DP, 1 x HDMI, Supporting 4K Display
  • Onboard LPDDR4 4GB
  • 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT
  • Long life cycle
  • Fanless Design

SPECIFICATIONS:

  • Processor:
  • CPU: Intel® Celeron® N5100 processor (Fanless)
  • Turbo Frequency: 2.80 GHz/2.90 GHz
  • Chipset: SoC
  • Processing Units: 4 Cores/4 Cores
  • Memory:
  • Type: Onboard LPDDR4-2666 MHz
  • Size: 4GB
  • Storage Supported:
  • Socket 1: 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD)
  • Socket 2: 1 x Full-size Mini-PCIe for MSATA
  • Graphics:
  • GPU: Intel® UHD Graphics
  • Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0, H.264, MEPG2
  • DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)
  • HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)
  • Network:
  • Controller: Realtek RTL 8111H Gigabit Ethernet
  • Interface: 2 x RJ45
  • Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
  • Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot
  • I/O:
  • USB: 2 x USB3.2 Gen2, 4 x USB2.0
  • Serial Port: 1 x RS232
  • Audio: 1 x MIC-IN, 1 x AUDIO-OUT
  • Antenna: 2 x Connector for Wi-Fi/BT, 1 x Connector for 3G/4G (Reserved)
  • Button: 1 x Power on, 1 x CLR-CMOS
  • System:
  • TPM: TPM2.0
  • Watchdog Timer: Yes
  • Auto Power on: Yes
  • RTC: Set up independently every day
  • Remo on: Yes
  • Fanless: Yes
  • Operation System:
  • Windows: Windows 10 (64Bit), Windows 11 (64bit)
  • Linux: Linux Ubuntu (64bit)
  • Power:
  • Power Type: DC-IN
  • Input Voltage: 19V/2.37A
  • Environment:
  • Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
  • Relative Humidity: 95% @ 45°C (non-condensing)
  • Certification: CE, FCC Class B
  • Construction: Metal
  • Fanless: Yes
  • Colour: Black
  • Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

  • Giada F106D Intel Celeron Ultra-compact Fanless Player 4 GB – Black x1
  • Wi-Fi Antenna x2
  • AC Power Adapter x1
  • Power Cable x1
  • User Manual x1
