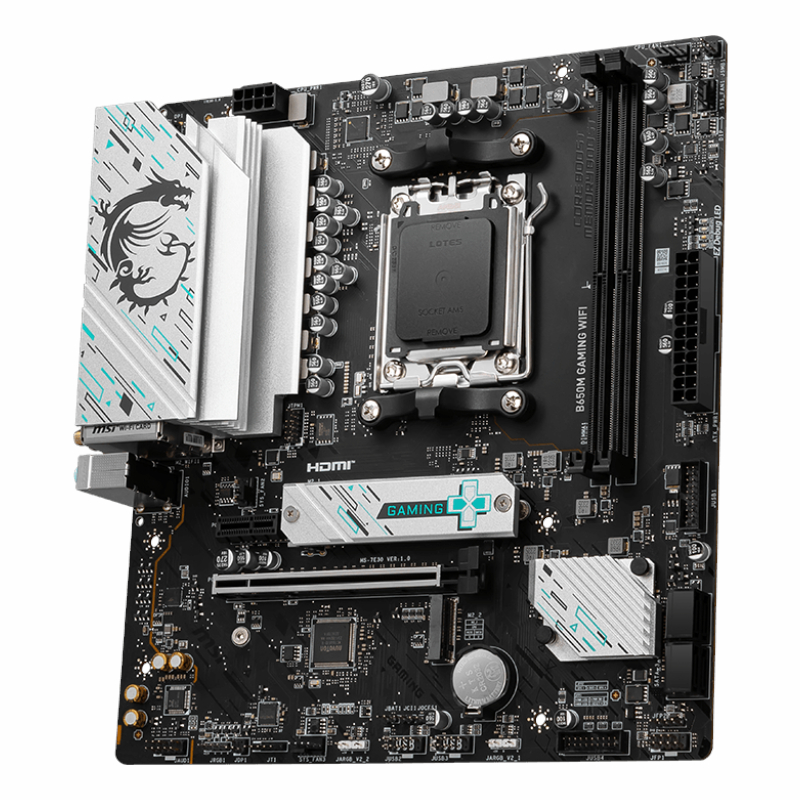

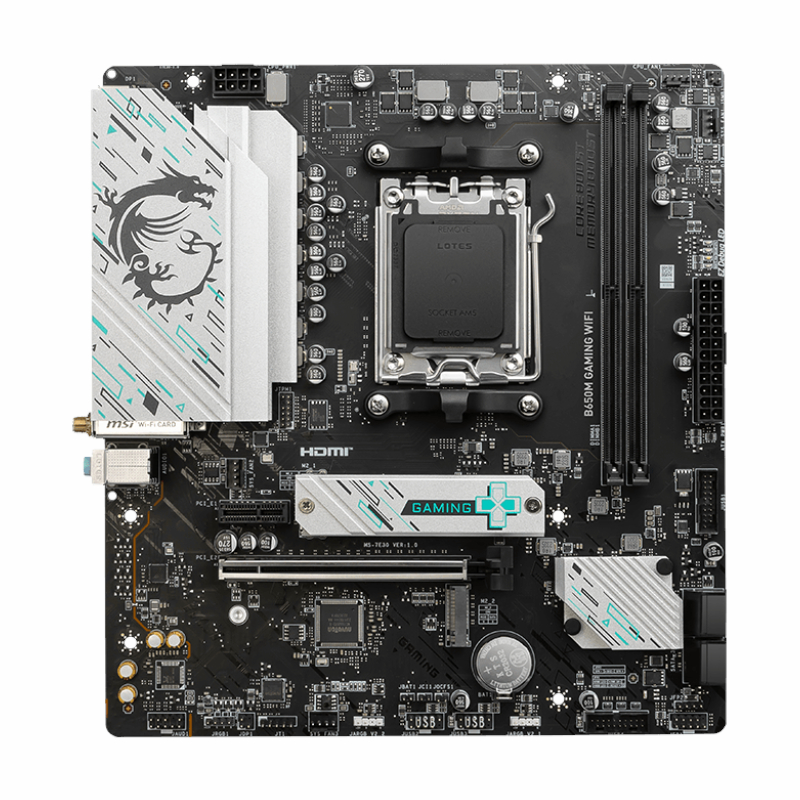

MSI B650M GAMING WIFI AMD AM5 mATX Gaming Motherboard

B650M GAMING WIFI is designed with tonnes of connectivity, flexible tools, and a convenient Wi-Fi solution with a DDR5 memory version for gamers who want it all.

This is a huge step in DDR performance enhancement with the latest DDR5 memory. With a dedicated SMT welding process and MSI Memory Boost technology, B650M GAMING WIFI is ready to deliver world-class memory performance. The advanced SMT (Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. With exclusive Memory Boost technology, MSI motherboards deliver a clean and pure high-frequency DDR5 signal.

Core Boost technology utilises MSI’s premium layout and optimised power design to deliver CPU current with increased speed and precision. The software supports multi-core CPUs and optimises CPU overclocking. MSI B650M GAMING WIFI series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster, and have a real advantage over your enemies. MSI B650M GAMING WIFI series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies

FEATURES:

• Supports AMD RyzenTM 8000 and 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7800+ (OC) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
• Steel Armour: Protecting VGA cards against bending and EMI for better performance, stability and strength
• AUDIO Boom: Reward your ears with studio-grade sound quality for the most immersive gaming experience
• High-Quality PCB: 6-layer PCB made by 2 oz. thickened copper

SPECIFICATIONS:

• Socket: AM5
• CPU Support: Supports AMD RyzenTM 8000/7000 Series Desktop Processors
• Chipset: AMD B650
• DDR5 Memory: DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MHz; 1DPC 2R Max speed up to 6400+ MHz
• Memory Channel: Dual-Channel DDR5
• DIMM Slots: 2
• Max Memory (GB): 128GB
• PCI-E x16: 1
• PCI-E x1: 2
• SATA 6G: 4
• M.2 Slot: 2
• RAID: 0/1/10
• LAN: Realtek® 8125BG 2.5G LAN
• TPM pin header (Support TPM 2.0): 1
• USB 2.0 (Rear): 2
• USB 2.0 (Front): 4
• USB 5Gbps Type A (Rear): 3
• USB 5Gbps Type C (Rear): 1
• USB 5Gbps Type A (Front): 4
• Audio ports (Rear): 7.1-Channel High Definition Audio, Realtek^® RTL8125BG 2.5Gbps LAN
• Wifi: AMD Wi-Fi 6E
• Bluetooth: 5.3
• HDMI: 1
• DisplayPort: 1
• DirectX: 12
• Form Factor: mATX
• Operating System: Support for Windows® 11 64-bit and Windows® 10 64-bit

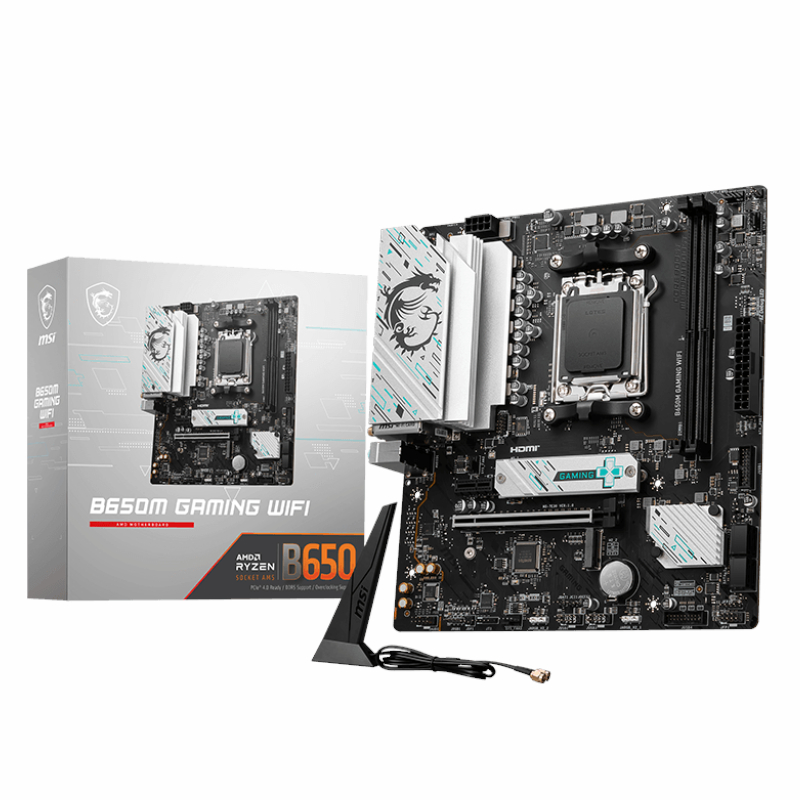

WHAT’S IN THE BOX?

• MSI B650M Gaming Wifi AMD AM5 mATX Gaming Motherboard, Black x1
• I/O Shield x1
• SATA Cable x1
• EZ M.2 Clips x1
• Wifi Antenna x1
• Quick Install Guide x1
